CC Products brake discs are laser cut from hot rolled Swedish precision, extra high strength, cold forming steel from a carefully controlled process. This steel combines high strength with a low weight that are obtained with a raw material that has carbon and manganese with a precise addition of grain refiners such as niobium, titanium and vanadium.
The brake discs are designed with the latest Cad/Cam technology for the highest precision and the surface are zinc coated for a high finish.
CC Products brake discs have several advantages:
Wheels & Parts manufactures, restore and sells parts for motorcycles.
We care!
Large enough to deliver and small enough to care!
Business Hours
Monday-Thursday 09:00-18:00
Friday 09:00-17:00
For more information: www.wheelsandparts.se
780 SEK
(About € 73.86)
Article number: 5100-176 BUY IT HERE!
KX 125-500 85-88

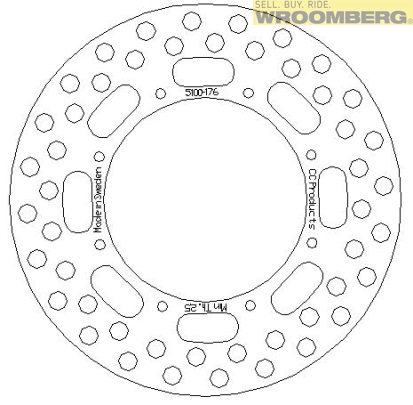

Brake disc with OEM design, see picture.
This brake disc fits the following motorcycles:
Kawasaki
KX 125 85-88
KX 250 85-88
KX 500 85-88
KDX 200 86-88
MEASUREMENTS
Outer diameter: 250 mm
Inner diameter: 130 mm
Thickness: 3 mm
Number of bolt holes: 8
Hole diameter: 6,5 mm
Pitch: 147 mm
Countersink: 90 dg
CC Bolt article number: 1083-010
OEM Ref. 41080-1147
CC Products - 5100-176
Kawasaki KDX 200 1986-1988
Kawasaki KX 125 1985-1988
Kawasaki KX 250 1985-1988
Kawasaki KX 500 1985-1988
Left
CC Products brake discs are laser cut from hot rolled Swedish precision, extra high strength, cold forming steel from a carefully controlled process. This steel combines high strength with a low weight that are obtained with a raw material that has carbon and manganese with a precise addition of grain refiners such as niobium, titanium and vanadium.
The brake discs are designed with the latest Cad/Cam technology for the highest precision and the surface are zinc coated for a high finish.
CC Products brake discs have several advantages:
